Qingdao Shengying Steel Co., Ltd.

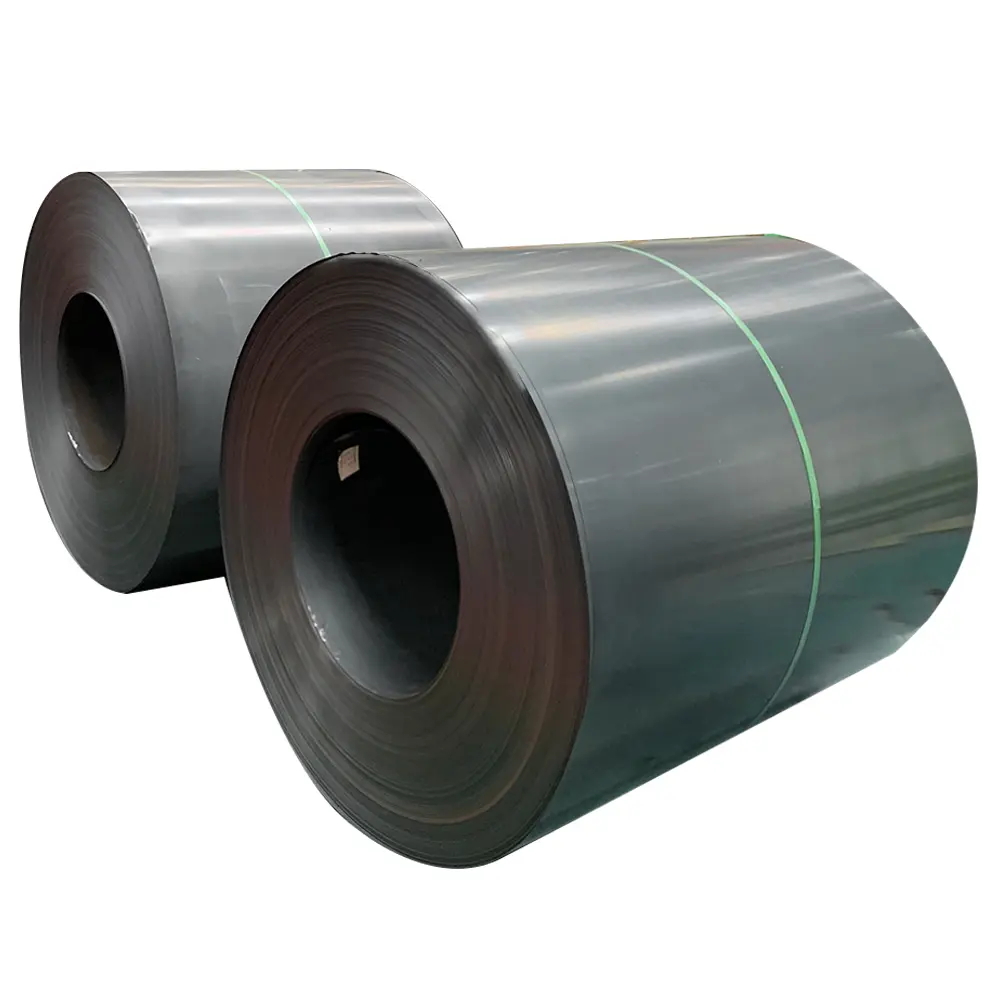

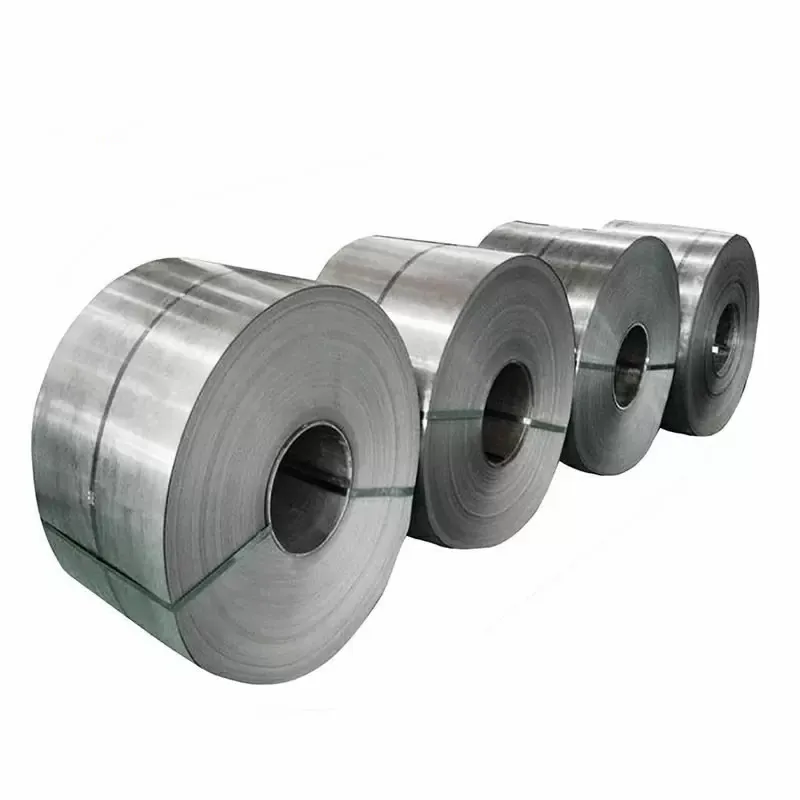

Cold Rolled Carbon Steel Coil
Cold rolling is rolling under recrystallization, but it is generally understood as rolling using normal temperature rolling materials. Since cold-rolled coils are not heated during the production process, there are no defects such as pitting and scale that often occur in hot rolling, and the surface quality is good and the finish is high. Moreover, the dimensional accuracy of cold-rolled products is high, and the performance and structure of the products can meet some special requirements for use, such as electromagnetic properties and deep drawing properties.
categorizes：
Carbon Steel Coil
PRODUCT DETAILS
| Product | Cold Rolled Steel DC01 CR Coil and Sheet |
| Grade | ST-12, DC01, DC03, SGCH,SGCC,DX51D |
| Standard | JIS G3302,JIS G3312,EN10142,ASTM A653M |
| Technique | Cold Rolled |
| Surface | Mill, Slightly Oiled, Skin Pass |
| Thickness | 0.5mm - 3.0mm |
| Size | Width 600mm-1250mmLength 1000mm - 3000mm |
| Packing | In standard export package, wooden pallets or as required |
| Delivery Time | Ready stocks 3-7 days, customized 7-10 days for customized size |
| MOQ | 20 Ton |
| Export To | Singapore, Canada, Indonesia, Korea, USA, UK, Thailand,Saudi Arabia, Vietnam,India, Peru, Ukraine ,Brazil,South Africa, etc. |
The difference between chilled coil and cold rolled coil:
Chilled coils are hot-rolled coils that are pickled and cold-rolled. It can be said to be a kind of cold rolled coil.
Cold-rolled coils (annealed state): hot-rolled coils obtained by pickling, cold rolling, bell annealing, tempering, and (finishing).
There are three main differences between the two:
1. In appearance, generally chilled coils are a bit black.
2. The surface quality, structure, and dimensional accuracy of cold-rolled sheets are better than chilled coiled sheets.
3. In terms of performance, because the chilled coil directly obtained by the hot-rolled coil through the cold rolling process undergoes work hardening during cold rolling, resulting in an increase in yield strength and residual internal stress, the external performance is relatively "hard". It is called chilled coil.
Therefore, the yield strength: the chilled coil is larger than the cold-rolled coil (annealed state), which makes the cold-rolled coil (annealed state) more conducive to stamping.
Generally, the default delivery state of cold-rolled coils is annealed.
Mechanical properties of cold rolled coil:
| Grade | Yield Strength ReLMpa | Tensile Strength RmMpa | Elongation A80mm% | Plastic Strain Ratio r90 | Strain Hardening Exponent n90 |
| DC01 | 140～280 | 270～410 | ≥28 | ||
| DC02 | 140～240 | 270～370 | ≥34 | ≥1.4 | |
| DC03 | 120～210 | 270～350 | ≥38 | ≥1.8 | ≥0.18 |
| DC04 | 120～180 | 270～330 | ≥40 | ≥2.0 | ≥0.20 |
| Grade | Yield Strength Rel MPa | Tensile Strength Rm MPa | Plastic Strain Ratio r90 | Strain Hardening Exponent n90 |
| SPCC | 130~300 | 270~410 | ||
| SPCD | 120~240 | 270~370 | ≥1.3 | |
| SPCE | 120~210 | 270~350 | ≥1.8 | ≥0.18 |
Cold-rolled coil grade, supply standard, product size and use
| Grade | Supply Standard | Product Size（㎜） | Application | |
| Nominal Thickness | Nominal Width | |||
| DC01、 DC02、 DC03、DC04、SPCC、SPCD、SPCE | GB/T 708EN 10130:1998JISG3141:2005 | 0.3～3.0 | 20～1600 | It is suitable for parts formed by general forming knife deep drawing |

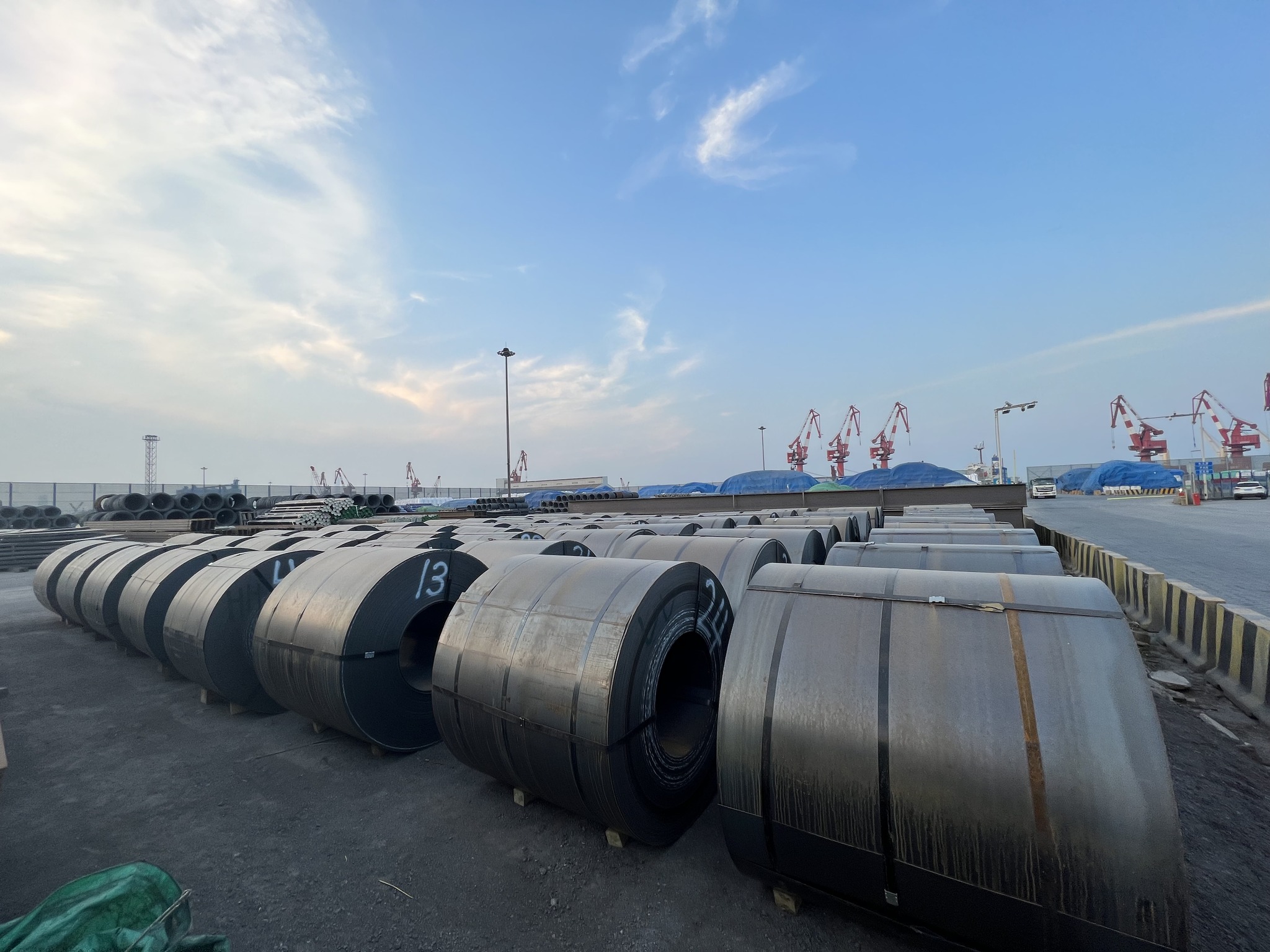

Warehouse Storage
Qingdao Shengying Steel Co., Ltd., Ltd. as a leader manufacturer in steel supplier from China, is a reliable and integrity steel supplier. With more than 10 years steel processing and exporter experiences, we have a factory building of 20000 square meters and annual production of 23,000 tons. We specialized in the production of stainless steel, carbon steel, galvanized steel, aluminum, copper products, etc., suitable for fields such as engineering, coal mining, textiles, electricity, boilers, machinery, etc. Our products have passed the ISO9001 quality system certification and the EU CE certification.
Packing and shipping
We adhere to the management principle of "quality first, service first, continuous improvement and innovation, and customer satisfaction", with the quality goal of "zero defects, zero complaints". Looking forward to cooperate with you long term.
Technology
Our major products including Carbon Steel Plate, Carbon Steel Coil, Carbon Steel Pipe, Carbon Steel Bar, Stainless steel plate,Stainless steel coil , Stainless steel pipe, color coated coil, color tile, galvanized sheet, galvanized coil, Galvanized roofing,etc.
Customer Visit
Our company has extensive experience in the development and export of metal and steel materials. Our company is the long-term reliable steel supplier you are looking for!
Application field
Products are widely used in aerospace, building bridges, precision instruments, petrochemical and other industries.We manufacture own brand steel products and also we can supply other famous brand steel product.
